| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

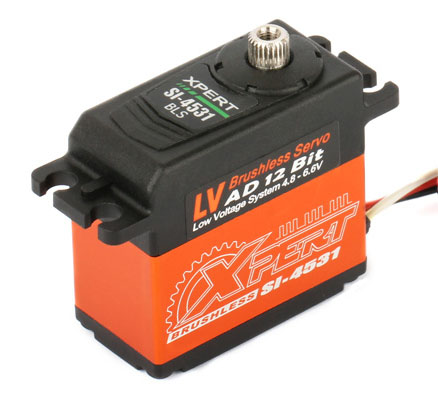

| Product Name | SI-4531 Standard Size Aluminum Servo |
| Part Name | SI-4531 |
| Power Supply | 4.8~6.6V |
| Speed (sec/ 60°) | @4.8V: .120 sec/60° @6.0V: .100 sec/60° @6.6V: .090 sec/60° |
| Torque (oz/in) | @4.8V: 210.98 oz-in @6.0V: 263.72 oz-in @6.6V: 290.09 oz-in |
| Torque (kg/cm) | @4.8V: 15.20 kg-cm @6.0V: 19.00 kg-cm @6.6V: 20.90 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 62.5g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | 1/10 and 1/8 Surface |
| Plastic Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS72910 |
● Brushless motor design provides extremely high speed, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum middle case for optimized thermal dissipation.
● Strong All Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
