M-25T-O

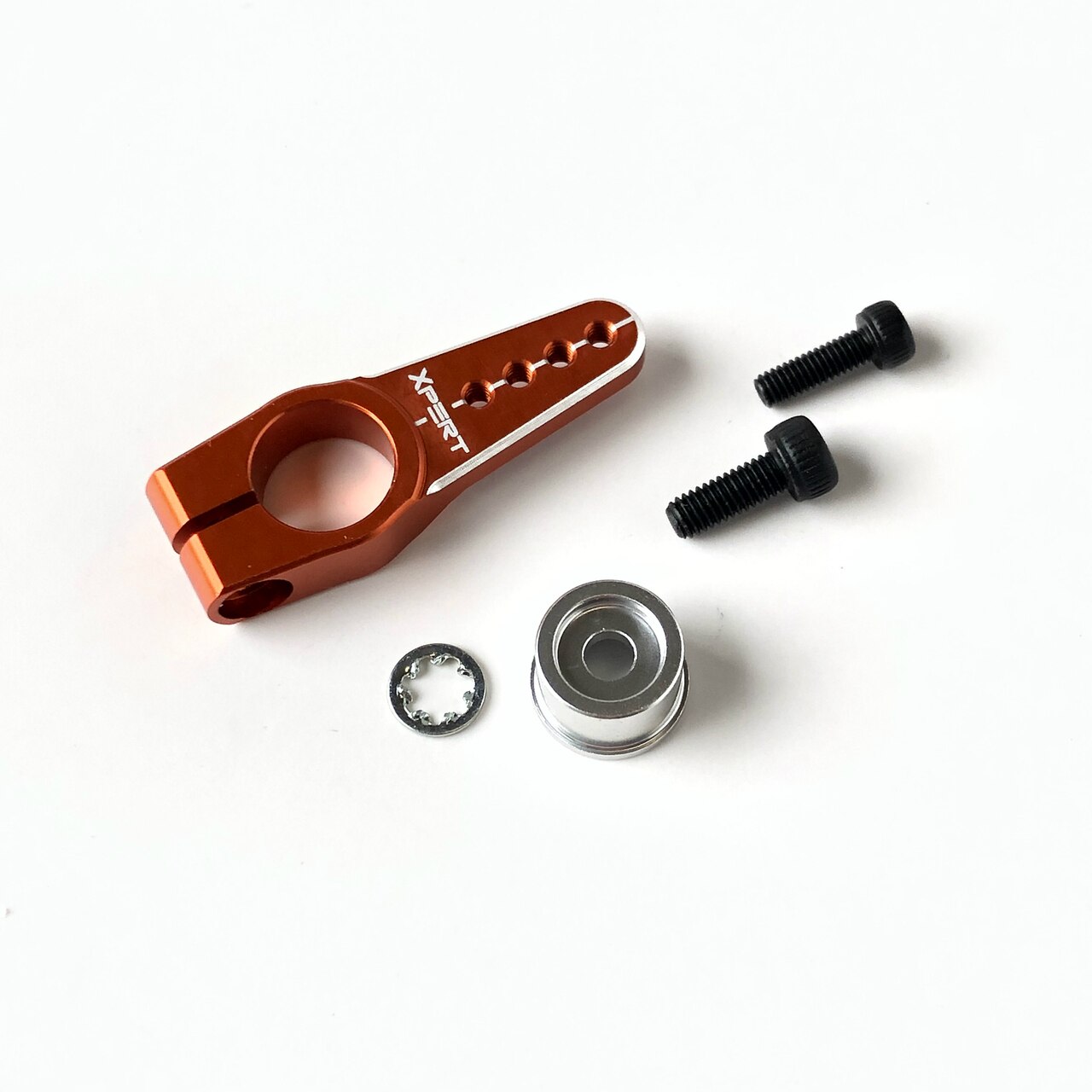

● Aluminum 25T clamping servo horn.


PRODUCT SPECIFICATIONS
For Xpert servo GS-6401-HV(R2) / GS-3302T-HV(R2T)

● Clamp design
● 3.00mm thickness arm

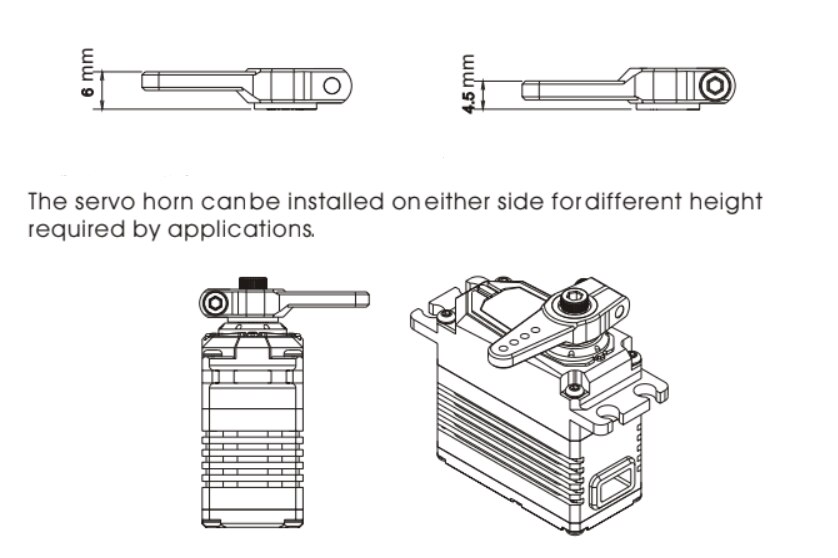

● The servo horn can be installed either side for different height requirement application.
● 33.50mm overall length

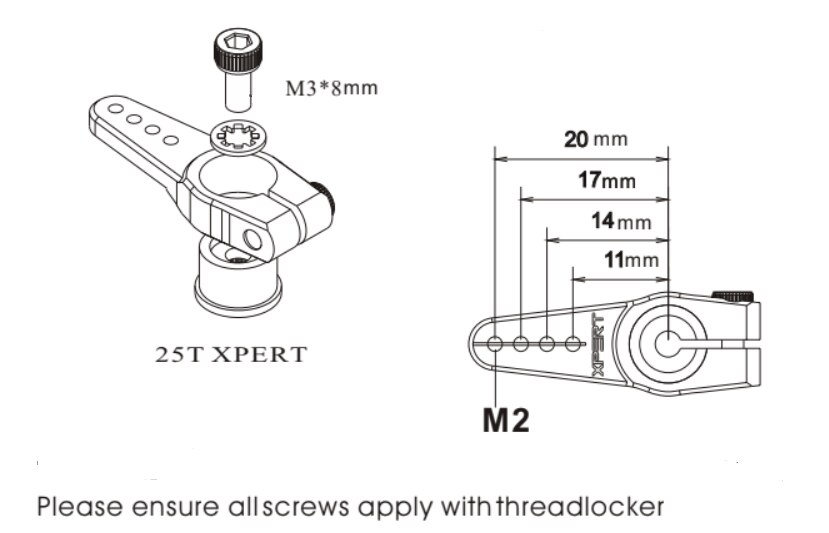

● 11/14/17/20mm hole spacing (measured from output shaft screw hole, to linkage rod holes, center to center)
● 25T spline Xpert output shaft
