M2

MI-3301-HV

Mini Size Aluminum Servo



PRODUCT SPECIFICATIONS
Type Mini

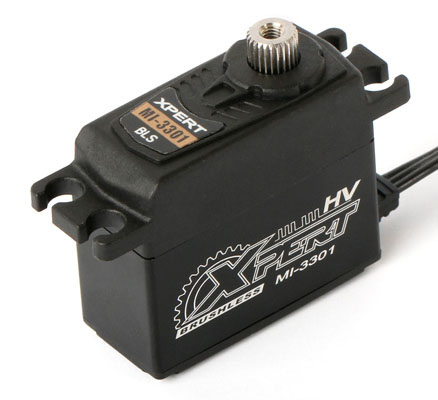

Product Name MI-3301-HV Mini Size Aluminum Servo
Part Name MI-3301-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .083sec/60° @8.4V: .06 sec/60°
Torque (oz/in) @6.0V: 141.85 oz-in @8.4V: 198.48 oz-in
Torque (kg/cm) @6.0V: 10.21 kg-cm @8.4V: 14.29 kg-cm
Dimensions 33.6x15x29.5mm
Weight 37.5g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520 us
Applications 1/12 Surface, Airplane Aileron
Plastic Case XP-04
Hardware Parts Xpare-03
Gear Set P/N XGS72000

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● Plastic upper and lower case with center aluminum design
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
