| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Low Profile |

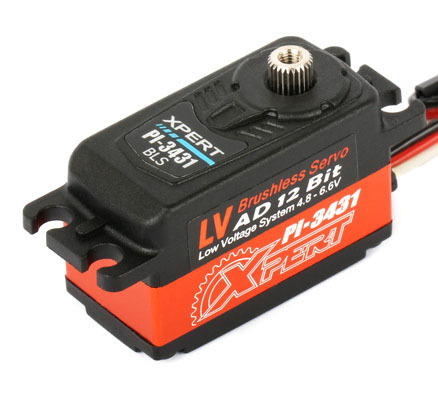

| Product Name | PI-3431 Low Profile Aluminum Servo |
| Part Name | PI-3431 |
| Power Supply | 4.8~6.6V |
| Speed (sec/ 60°) | @4.8V:.080 sec/60° @6.0V: .070 sec/60° @6.6V : .060 sec/60° |
| Torque (oz/in) | @4.8V: 113.26 oz-in @6.0V: 141.58 oz-in @6.6V: 155.73 oz-in |
| Torque (kg/cm) | @4.8V: 0.07 kg-cm @6.0V: 10.20 kg-cm @6.6V: 11.22 kg-cm |
| Dimensions | 40.8X20.2X26.8 mm |
| Weight | 45g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | 1/10 Buggy and Touring Car |
| Plastic Case | XP-02 |
| Hardware Parts | Xpare-02 |
| Gear Set P/N | XGS71720 |
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption
● Plastic upper and lower case with center aluminum design
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
