R3HV

RP-4401-HV

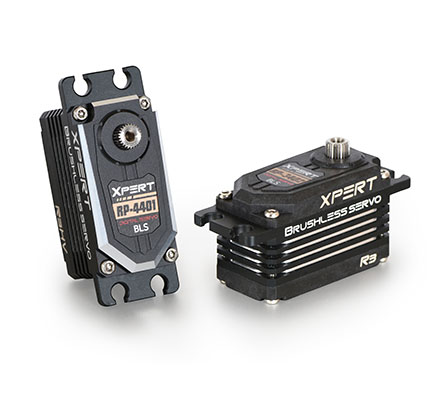

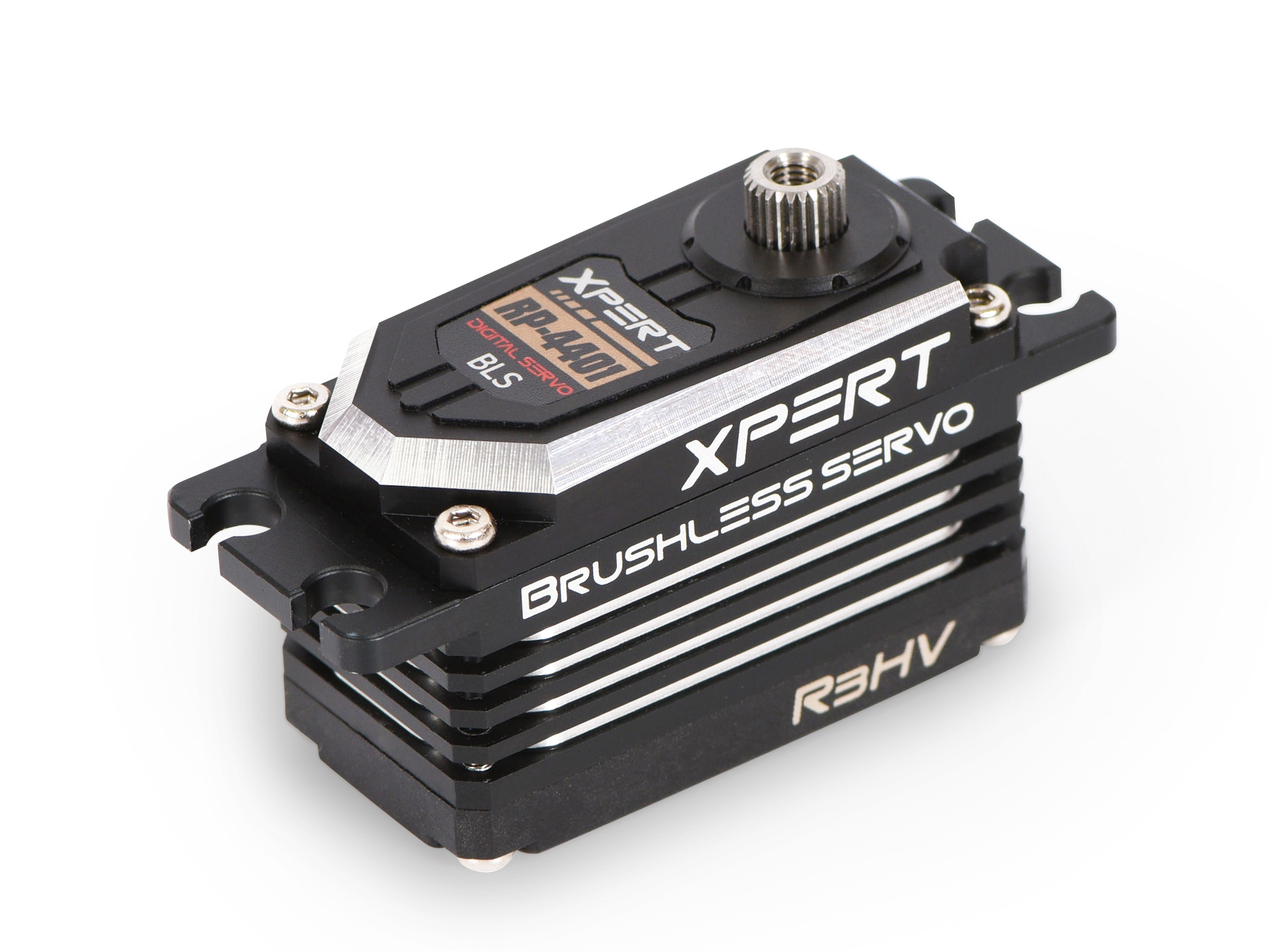

Low Profile Aluminum Servo



PRODUCT SPECIFICATIONS
Type Quick Release
Product Name RP-4401-HV R3HV Low Profile Aluminum Servo
Part Name RP-4401-HV R3HV Low Profile Aluminum Servo
Power Supply 6.0~8.4V
Speed (sec/ 60°) @6.0V: .070 sec/60° @6.6V: .063 sec/60° @7.4V: .056 sec/60° @8.4V: .049 sec/60°
Torque (oz/in) @6.0V: 180.16 oz-in @6.6V: 198.07 oz-in @7.4V: 222.08 oz-in @8.4V: 252.06 oz-in
Torque (kg/cm) @6.0V: 12.98 kg-cm @6.6V: 14.27 kg-cm @7.4V: 16 kg-cm @8.4V: 18.16 kg-cm
Dimensions 40.8X20.2X26.8 mm
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications 1/10 Buggy and Touring Car, airplane wings
Metal Case XC-21
Hardware Parts Xpare-02
Gear Set P/N XGS71740
Wire P/N XR-05 / XR-15 / XR-20

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 250+ oz-in torque at 8.4V
● Quick release connector for easy wiring
● Plastic lower case with center and top aluminum design
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
● Sanwa SSR mode compatible
