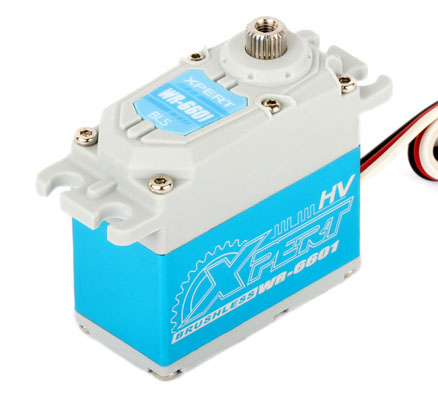

WR-6601-HV

Standard Size Waterproof Servo



PRODUCT SPECIFICATIONS
Type Standard Waterproof
Product Name WR-6601-HV Standard Size Waterproof Servo
Part Name WR-6601-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .154 sec/60° @7.4V: .125sec/60° @8.4V: .118 sec/60°
Torque (oz/in) @6.0V: 257.75 oz-in @7.4V: 317.99 oz-in @8.4V: 360.88 oz-in
Torque (kg/cm) @6.0V: 18.57 kg-cm @7.4V: 22.91 kg-cm @8.4V: 26 kg-cm
Dimensions 40x 37.8x20 mm
Weight 70.3g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications 1/10 & 1/8 Surface, Boat Rudder
Plastic Case XP-05
Hardware Parts Xpare-01
Gear Set P/N XGS7291S

● IP67 certified fully waterproof design
● Brushless motor design provides extremely high speed, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Plastic upper and lower with aluminum middle case for optimized thermal dissipation and durability.
● Strong All Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
