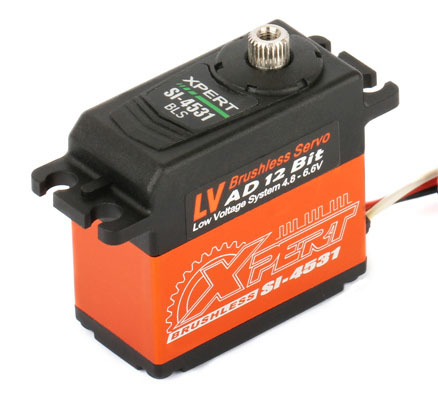

Standard Size Aluminum Servo

Type Standard
Product Name SI-4531 Standard Size Aluminum Servo
Part Name SI-4531
Power Supply 4.8~6.6V
Speed (sec/ 60°) @4.8V: .120 sec/60° @6.0V: .100 sec/60° @6.6V: .090 sec/60°
Torque (oz/in) @4.8V: 210.98 oz-in @6.0V: 263.72 oz-in @6.6V: 290.09 oz-in
Torque (kg/cm) @4.8V: 15.20 kg-cm @6.0V: 19.00 kg-cm @6.6V: 20.90 kg-cm
Dimensions 40x37.80x20 mm
Weight 62.5g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications 1/10 and 1/8 Surface
Plastic Case XP-01
Hardware Parts Xpare-01
Gear Set P/N XGS72910

● Brushless motor design provides extremely high speed, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum middle case for optimized thermal dissipation.
● Strong All Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
