| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

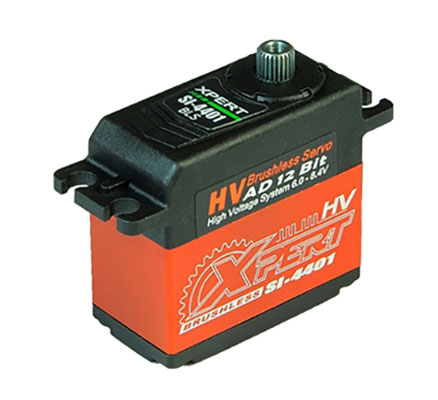

| Product Name | SI-4401-HV Standard Size Aluminum Servo |
| Part Name | SI-4401-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .111sec/60° @7.4V: .090 sec/60° @8.4V: .079 sec/60° |
| Torque (oz/in) | @6.0V: 186.41 oz-in @7.4V: 229.85 oz-in @8.4V: 260.94 oz-in |
| Torque (kg/cm) | @6.0V: 13.43 kg-cm @7.4V: 16.56 kg-cm @8.4V: 18.80 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 62.5g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | Helicopter Cyclic |
| Plastic Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS72320 |
● Brushless motor design provides extremely high speed, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum middle case for optimized thermal dissipation.
● Strong All Metal Gear.
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
