Standard Size Aluminum Servo

Type Standard

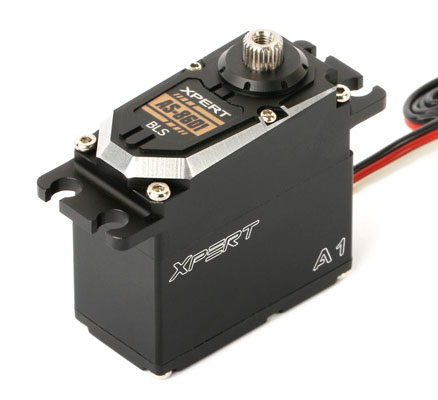

Product Name AS-8601-HV A1 Standard Size Aluminum Servo
Part Name AS-8601-HV
Power Supply 4.7V~8.4V
Speed (sec/ 60°) @6.0V: .14 sec/60° @7.4V: .11 sec/60° @8.4V: .10 sec/60°
Torque (oz/in) @6.0V: 378.37 oz-in @7.4V: 467.06 oz-in @8.4V: 530.22 oz-in
Torque (kg/cm) @6.0V: 27.26 kg-cm @7.4V: 33.65 kg-cm @8.4V: 38.20 kg-cm
Dimensions 40x40.5x20 mm
Weight 9.8g
Center Position 1520us
Applications Airplane
Metal Case XC-07
Hardware Parts Xpare-01
Gear Set P/N XGS7378S

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum case with engineering plastic bottom support
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
