| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard Waterproof |

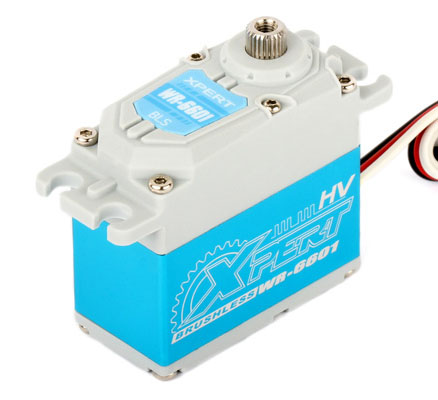

| Product Name | WR-6601-HV Standard Size Waterproof Servo |
| Part Name | WR-6601-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .154 sec/60° @7.4V: .125sec/60° @8.4V: .118 sec/60° |
| Torque (oz/in) | @6.0V: 257.75 oz-in @7.4V: 317.99 oz-in @8.4V: 360.88 oz-in |
| Torque (kg/cm) | @6.0V: 18.57 kg-cm @7.4V: 22.91 kg-cm @8.4V: 26 kg-cm |
| Dimensions | 40x 37.8x20 mm |
| Weight | 70.3g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | 1/10 & 1/8 Surface, Boat Rudder |
| Plastic Case | XP-05 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS7291S |
● IP67 certified fully waterproof design
● Brushless motor design provides extremely high speed, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Plastic upper and lower with aluminum middle case for optimized thermal dissipation and durability.
● Strong All Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
