| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

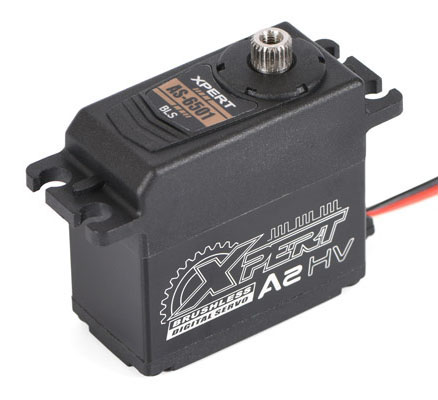

| Product Name | AS-6501-HV A2 Standard Size Aluminum Servo |
| Part Name | AS-6501-HV |
| Power Supply | 4.8V~8.4V |
| Speed (sec/ 60°) | @7.4V: .104 sec/60° @8.4V: .096 sec/60° |
| Torque (oz/in) | @7.4V: 304.95 oz-in @8.4V: 348.94 oz-in |
| Torque (kg/cm) | @7.4V: 21.97 kg-cm @8.4V: 25.14 kg-cm |
| Dimensions | 40x20x37.8mm |
| Weight | 71g |
| Center Position | 1520us |
| Applications | Airplane |
| Plastic Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS73780 |
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum case with engineering plastic upper and bottom support
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
