| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

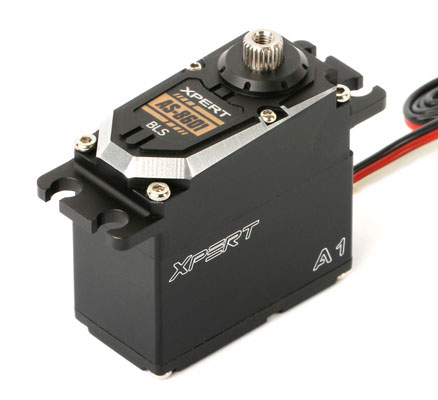

| Product Name | AS-8601-HV A1 Standard Size Aluminum Servo |
| Part Name | AS-8601-HV |
| Power Supply | 4.7V~8.4V |
| Speed (sec/ 60°) | @6.0V: .14 sec/60° @7.4V: .11 sec/60° @8.4V: .10 sec/60° |
| Torque (oz/in) | @6.0V: 378.37 oz-in @7.4V: 467.06 oz-in @8.4V: 530.22 oz-in |
| Torque (kg/cm) | @6.0V: 27.26 kg-cm @7.4V: 33.65 kg-cm @8.4V: 38.20 kg-cm |
| Dimensions | 40x40.5x20 mm |
| Weight | 9.8g |
| Center Position | 1520us |
| Applications | Airplane |
| Metal Case | XC-07 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS7378S |
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum case with engineering plastic bottom support
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
