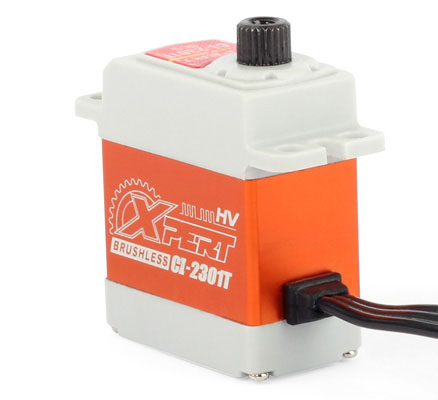

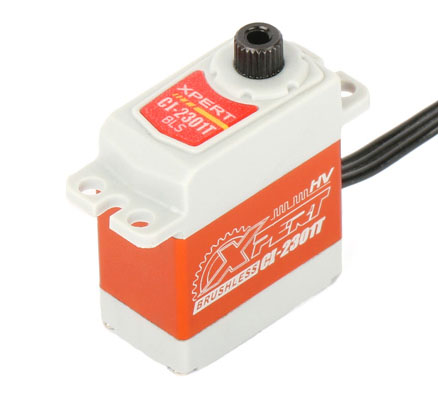

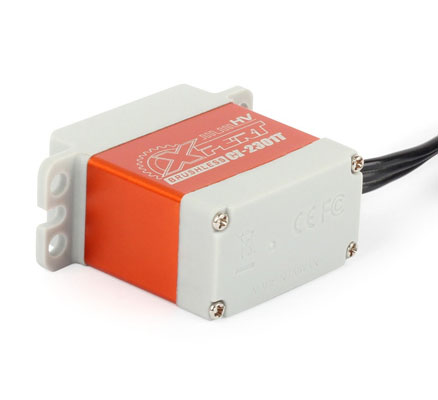

CI-2301T-HV

Micro Size Aluminum Servo



PRODUCT SPECIFICATIONS
Type Micro
Product Name CI-2301T-HV Micro Size Aluminum Servo
Part Name CI-2301T-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .071sec/60° @7.4V: .058 sec/60° @8.4V: .051 sec/60°
Torque (oz/in) @6.0V: 23.99 oz-in @7.4V: 66.62 oz-in @8.4V: 75.65 oz-in
Torque (kg/cm) @6.0V: 3.89 kg-cm @7.4V: 4.80 kg-cm @8.4V: 5.45 kg-cm
Dimensions 23.15x29x13 mm
Weight 21g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 760us
Applications Helicopter Tail
Plastic Case XP-03
Hardware Parts Xpare-04
Gear Set P/N XGS72040

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● Plastic upper and lower case with center aluminum design
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
● 760us narrow band
