| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Micro |

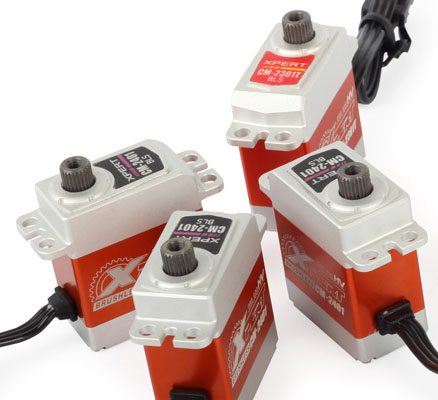

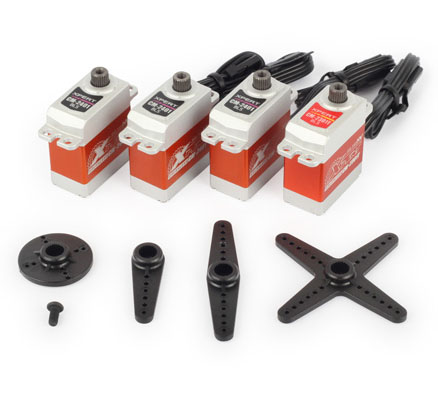

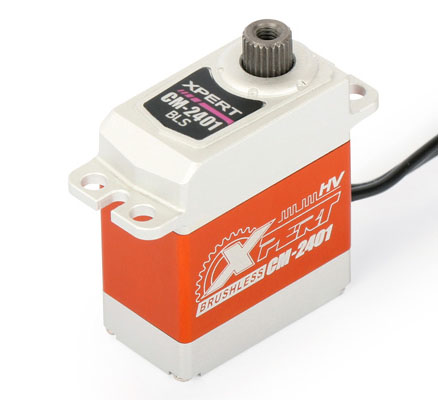

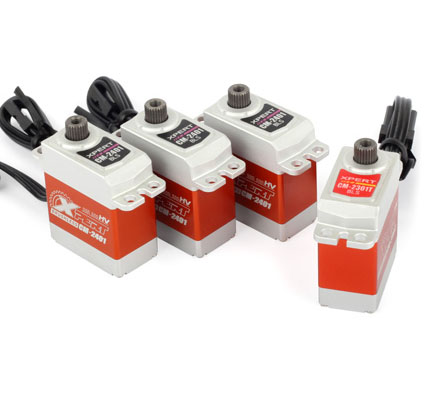

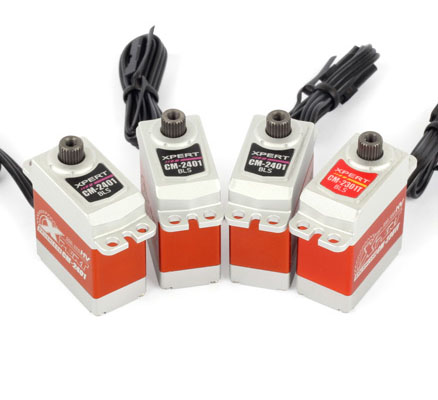

| Product Name | CM-2401-HV Micro Size Full Aluminum Servo |
| Part Name | CM-2401-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .085sec/60° @7.4V: .069 sec/60° @8.4V: .061 sec/60° |
| Torque (oz/in) | @6.0V: 83.56 oz-in @7.4V: 83.56 oz-in @8.4V: 114.79 oz-in |
| Torque (kg/cm) | @6.0V: 6.02 kg-cm @7.4V: 6.02 kg-cm @8.4V: 8.27 kg-cm |
| Dimensions | 23.15x29x13 mm |
| Weight | 21g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | Helicopter Cyclic |
| Metal Case | XC-03 |
| Hardware Parts | Xpare-04 |
| Gear Set P/N | XGS72040 |
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
