| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

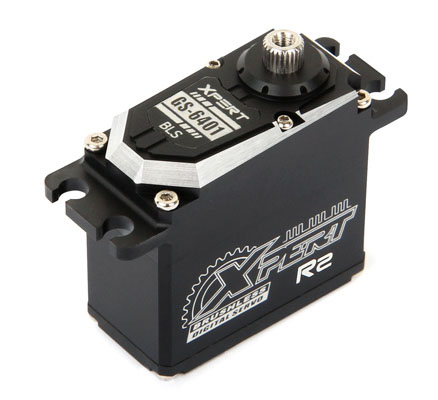

| Product Name | GS-6401-HV R2 Standard Size Aluminum Servo |
| Part Name | GS-6401-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60° |
| Torque (oz/in) | @6.0V: 296.45 oz-in) @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in |
| Torque (kg/cm) | @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 70g |
| Range | up to 400Hz |
| Center Position | 1520us |
| Applications | Helicopter Cyclic |
| Metal Case | XC-09 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS7232S |
| Wire P/N | XW-15 / XW-30 |
● Quick release cable that allows easy and quick installation for all helicopters.
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum upper and center case.
● Plastic bottom case.
● Strong metal gear.
● Glitch-free.
● Sophisticated error correction.
● High-Speed, High-precision 12-bit AD converter and CPU calculation.
● Fail safe.
● Over current protection.
● Over temperature protection.
● Start sonorant.
● Operating frequency up to 400Hz.
