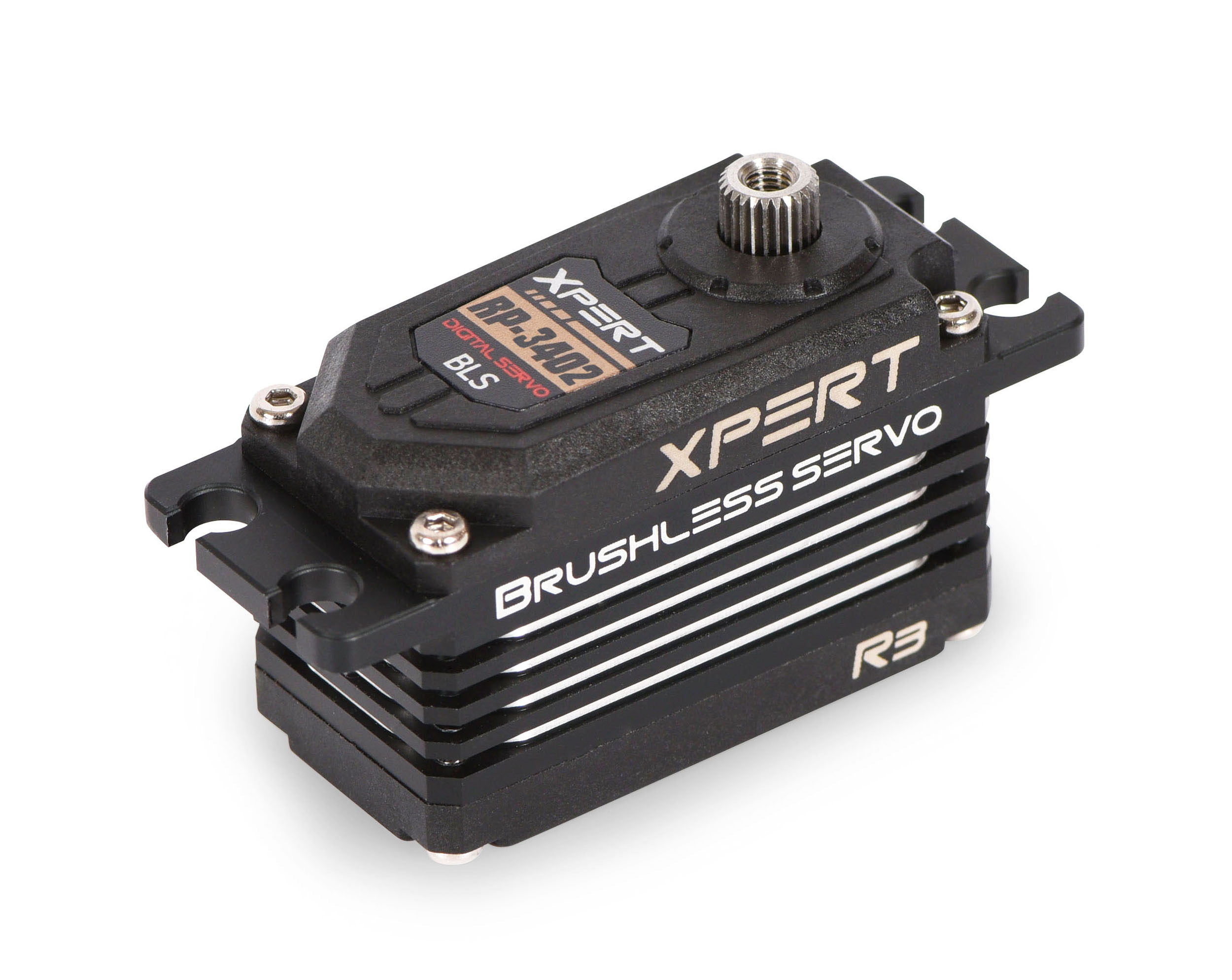

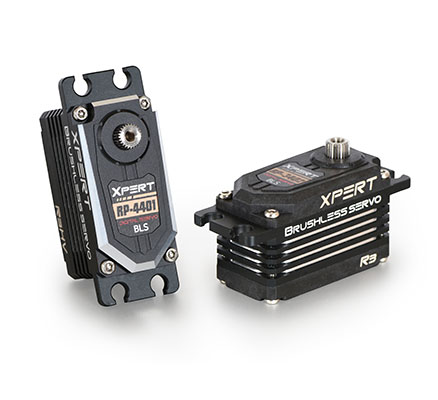

Low Profile Aluminum Servo

Type Quick Release
Product Name RP-3401 R3 Low Profile Aluminum Servo
Part Name RP-3402 R3 Low Profile Aluminum Servo
Power Supply 4.8~6.6V
Speed (sec/ 60°) @4.8V: .095 sec/60° @6.0V: .070 sec/60° @6.6V: .063 sec/60°
Torque (oz/in) @4.8V: 147.54 oz-in @6.0V: 208.20 oz-in @6.6V: 229.02 oz-in
Torque (kg/cm) @4.8V: 10.63 kg-cm @6.0V: 15.00 kg-cm @6.6V: 16.5 kg-cm
Dimensions 40.8X20.2X26.8 mm
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications 1/10 Buggy and Touring Car, airplane wings
Plastic Case XP-06
Hardware Parts Xpare-02
Gear Set P/N XGS71740
Wire P/N XR-05 / XR-15 / XR-20

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 200+ oz-in torque
● Quick release connector for easy wiring
● Plastic upper and lower case with center aluminum design
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
● Sanwa SSR mode compatible
