Micro Size Full Aluminum Servo

Type Micro

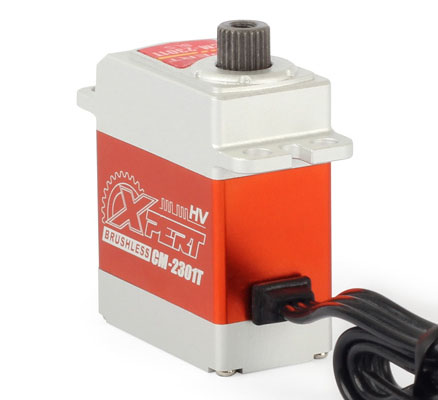

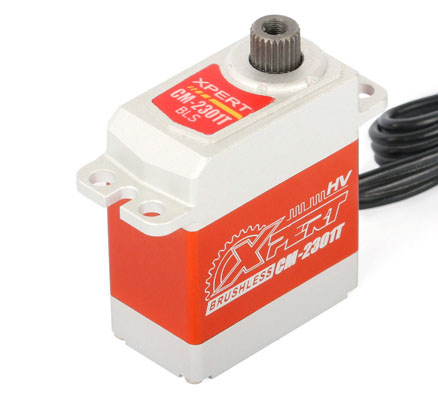

Product Name CM-2301T-HV Micro Size Full Aluminum Servo
Part Name CM-2301T-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .071sec/60° @7.4V: .058 sec/60° @8.4V: .051 sec/60°
Torque (oz/in) @6.0V: 53.99 oz-in @7.4V: 66.62 oz-in @8.4V: 75.65 oz-in
Torque (kg/cm) @6.0V: 3.89 kg-cm @7.4V: 4.80 kg-cm @8.4V: 5.45 kg-cm
Dimensions 23.15x29x13 mm
Weight 21g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 760us
Applications Helicopter Tail
Metal Case XC-03
Hardware Parts Xpare-04
Gear Set P/N XGS72040

● Brushless motor design provides extremely high speed, and low power consumption.
● 4096resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum middle case for optimized thermal dissipation.
● Strong All Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
