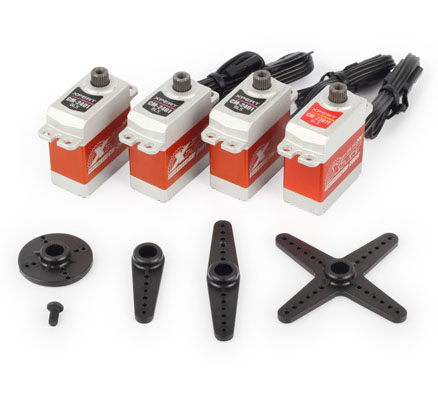

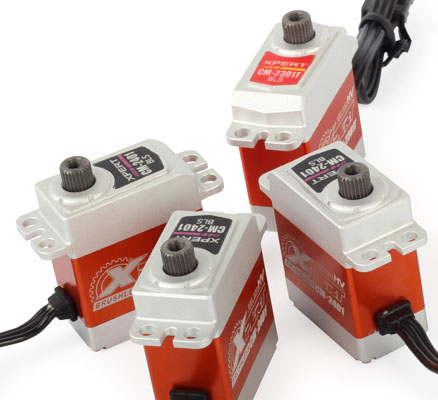

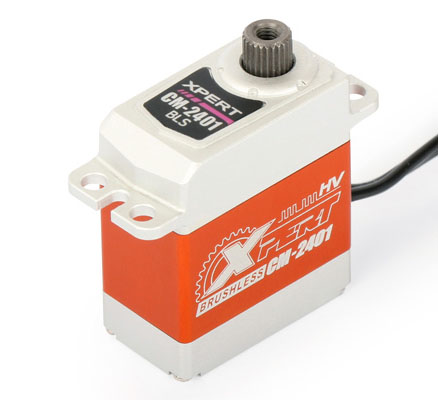

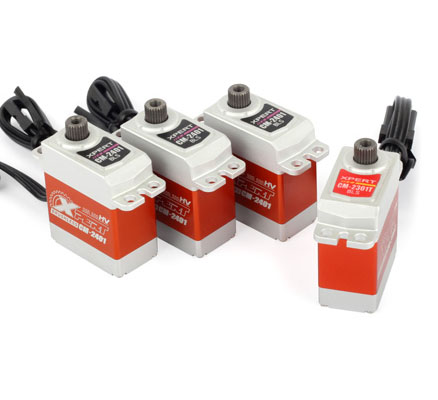

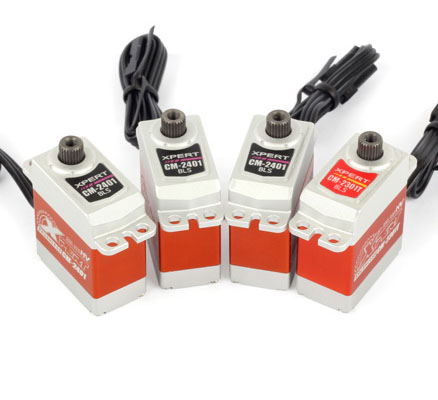

CM-2401-HV

Micro Size Full Aluminum Servo



PRODUCT SPECIFICATIONS
Type Micro
Product Name CM-2401-HV Micro Size Full Aluminum Servo
Part Name CM-2401-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .085sec/60° @7.4V: .069 sec/60° @8.4V: .061 sec/60°
Torque (oz/in) @6.0V: 83.56 oz-in @7.4V: 83.56 oz-in @8.4V: 114.79 oz-in
Torque (kg/cm) @6.0V: 6.02 kg-cm @7.4V: 6.02 kg-cm @8.4V: 8.27 kg-cm
Dimensions 23.15x29x13 mm
Weight 21g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications Helicopter Cyclic
Metal Case XC-03
Hardware Parts Xpare-04
Gear Set P/N XGS72040

● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
