KD1E

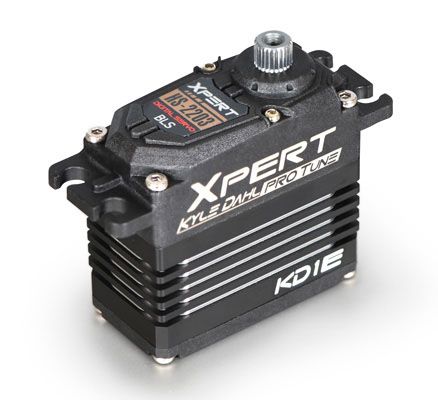

HS-2203-HV

Standard Size Aluminum Servo



PRODUCT SPECIFICATIONS
Type Standard
Product Name HS-2203-HV KD1E Standard Size Aluminum Servo
Part Name HS-2203-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .050 sec/60° @7.4V: .040 sec/60° @8.4V: .035 sec/60°
Torque (oz/in) @6.0V: 59.98 oz-in @7.4V: 73.98 oz-in @8.4V: 83.97 oz-in
Torque (kg/cm) @6.0V: 4.32 kg-cm @7.4V: 5.33 kg-cm @8.4V: 6.05 kg-cm
Dimensions 40x37.80x20 mm
Weight 61.9g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520us
Applications Helicopter Nitro Engine Throttle
Plastic Case XP-07
Hardware Parts Xpare-01
Gear Set P/N XGS7900S
Wire P/N XW-15 / XW-30

● Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
● Specifically design for nitro engine throttle channel
● Quick release cable that allows easy and quick installation for all helicopters.
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
