| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

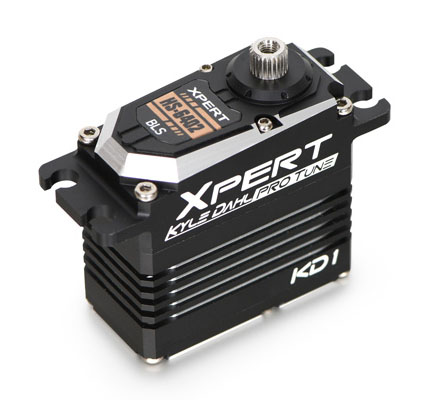

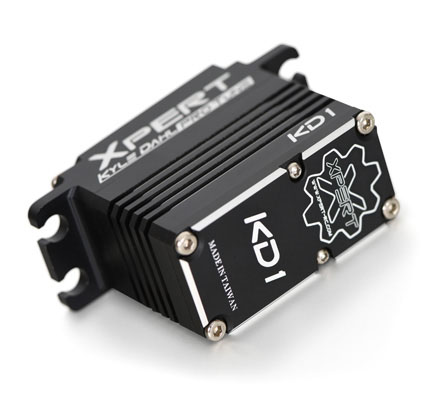

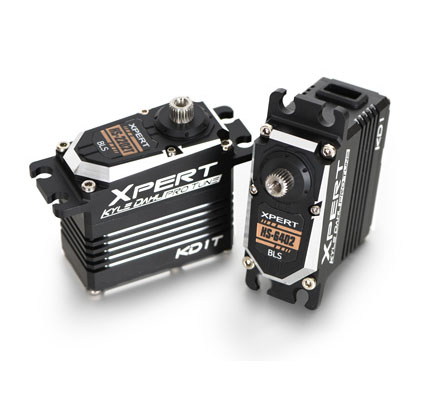

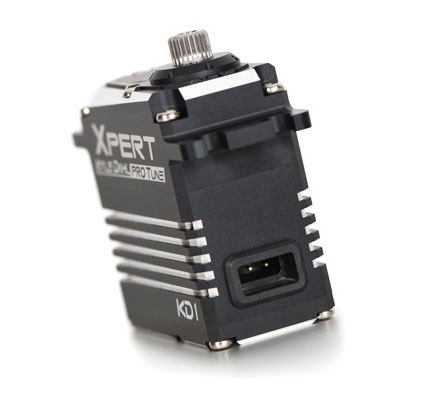

| Product Name | HS-6402-HV KD1 Standard Size Full Aluminum Servo |
| Part Name | HS-6402-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60° |
| Torque (oz/in) | @6.0V: 296.45 oz-in) @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in |
| Torque (kg/cm) | @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 72g |
| Range | up to 400Hz |
| Center Position | 1520us |
| Applications | Helicopter Cyclic |
| Metal Case | XC-18 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS7232S |
| Wire P/N | XW-15 / XW-30 |
● Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
● Global 3D 2017 Competition Winning Servo.
● Ultra High Responsive cyclic algorithm software.
● Quick release cable that allows easy and quick installation for all helicopters.
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
● Operating frequency up to 400Hz
