R2

GS-6401-HV

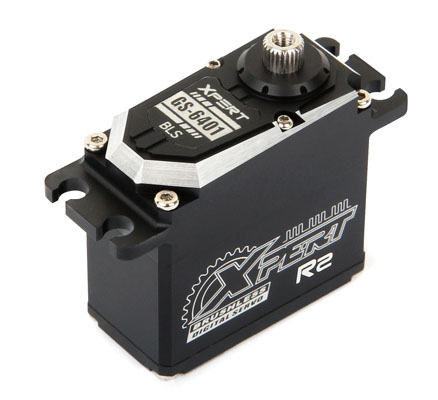

Standard Size Aluminum Servo



PRODUCT SPECIFICATIONS
Type Standard
Product Name GS-6401-HV R2 Standard Size Aluminum Servo
Part Name GS-6401-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60°
Torque (oz/in) @6.0V: 296.45 oz-in) @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
Torque (kg/cm) @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
Dimensions 40x37.80x20 mm
Weight 70g
Range up to 400Hz
Center Position 1520us
Applications Helicopter Cyclic
Metal Case XC-09
Hardware Parts Xpare-01
Gear Set P/N XGS7232S
Wire P/N XW-15 / XW-30

● Quick release cable that allows easy and quick installation for all helicopters.
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Aluminum upper and center case.
● Plastic bottom case.
● Strong metal gear.
● Glitch-free.
● Sophisticated error correction.
● High-Speed, High-precision 12-bit AD converter and CPU calculation.
● Fail safe.
● Over current protection.
● Over temperature protection.
● Start sonorant.
● Operating frequency up to 400Hz.
