| PRODUCT SPECIFICATIONS | |
|---|---|
| Type | Standard |

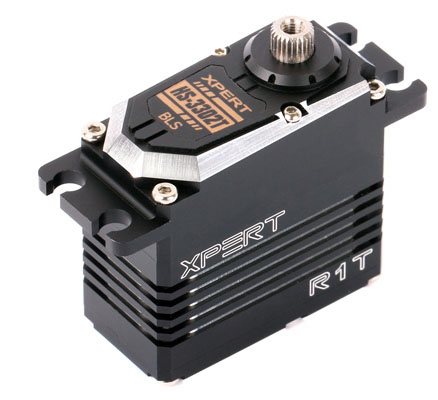

| Product Name | HS-3302T-HV R1T Standard Size Full Aluminum Servo |
| Part Name | HS-3302T-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .056 sec/60° @7.4V: .045 sec/60° @8.4V: .040 sec/60° |
| Torque (oz/in) | @6.0V: 166.56 oz-in @7.4V: 205.43 oz-in @8.4V: 233.18 oz-in |
| Torque (kg/cm) | @6.0V: 12.00 kg-cm @7.4V: 14.80 kg-cm @8.4V: 16.80 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 72g |
| Range | up to 800Hz |
| Center Position | 760us |
| Applications | Helicopter Tail |
| Metal Case | XC-08 |
| Hardware Parts | Xpare-01 |
| Gear Set P/N | XGS7162S |
| Wire P/N | XW-15 / XW-30 |
● Quick release cable that allows easy and quick installation for all helicopters.
● Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
● 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
● Light weight design
● All Aluminum case for the best thermal dissipation and durability.
● Strong Metal Gear
● Glitch-free
● Sophisticated error correction
● High-Speed, High-precision 12-bit AD converter and CPU calculation
● Fail safe
● Over current protection
● Over temperature protection
● Start sonorant
● 760us narrow band
● Operating frequency up to 800Hz
